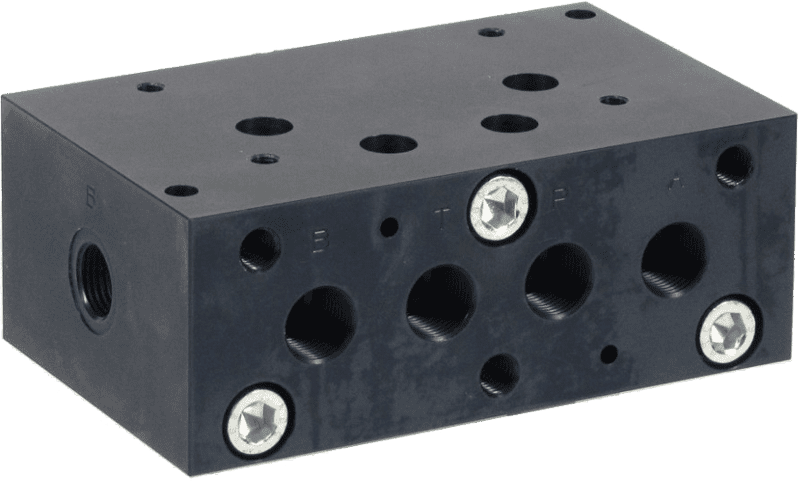

MSM Multi-station Manifold

Allows all available elements to be mounted on a single rack with various control functions and for various valves.

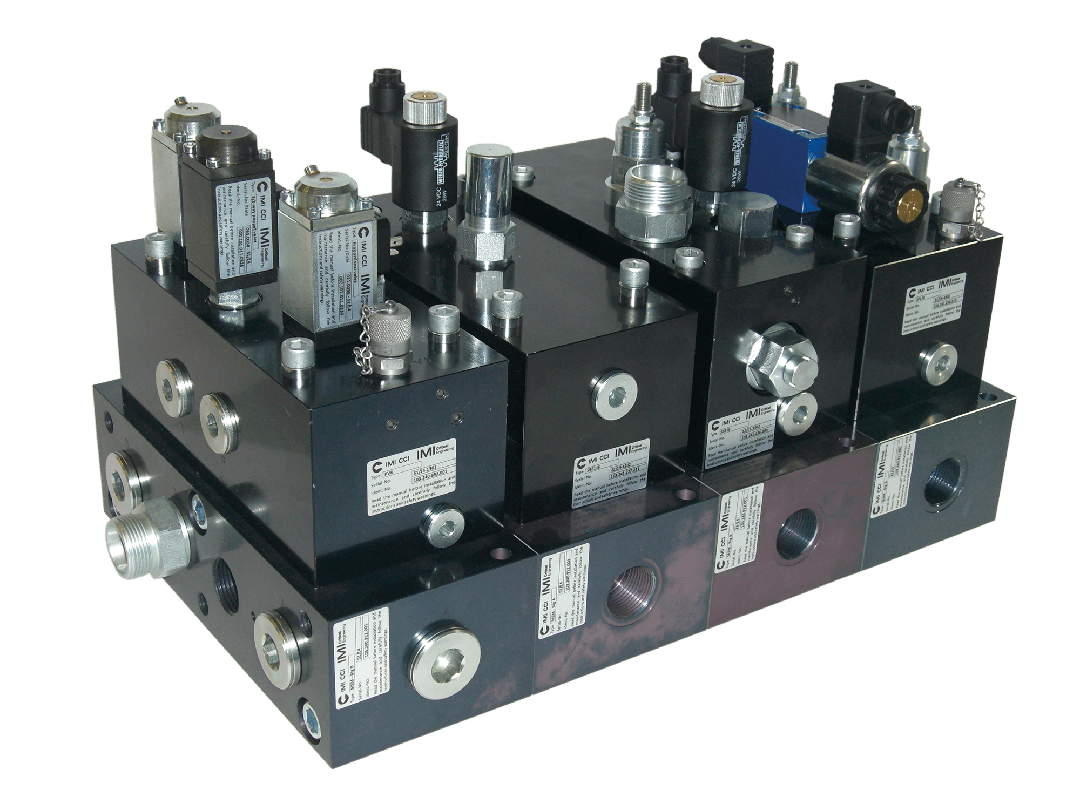

The MSM design allows a combination of up to 8 functional elements like the proportional valve (PV), trip mode device (SSB). All of the elements are fed by P and T channels internally of the MSM.

• Only one P and one T connection per MSM is necessary. Optional: two connections of each P and T for higher flow can be connected (If needed, contact IMI CCI Switzerland).
• Isolation of each channel in each plate is possible.
• Front, back and side connections can be closed to combine more function and feed more than one actuator.
• Designed for mineral oil and/or fire resistant hydraulic fluids.
