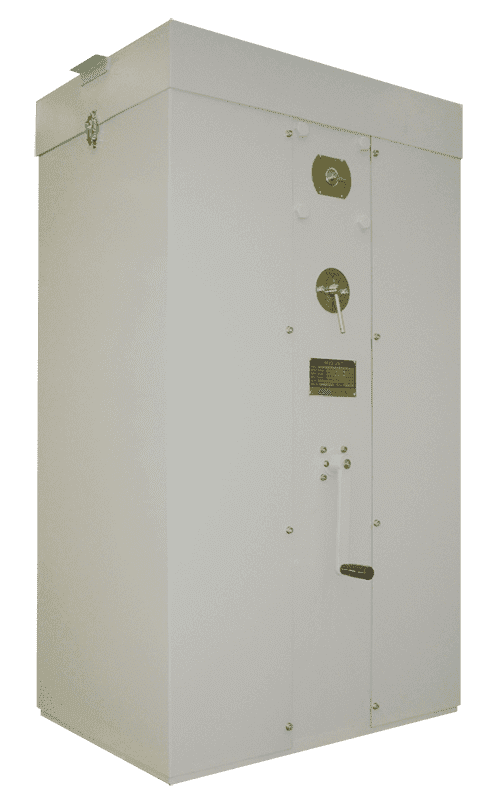

Pneumatic Drive Unit
IMI CCI’s new drive unit does not have a large hand wheel. Manual operation of the new drive unit is done by auto-manual switch valve and hand pump. By removing the hand wheel, we are able to save space for installation.
- Auto-manual switch valve: We can select, auto, manual open, manual position lock, manual close.
- Hand pump lever: To open or close cylinder by rotating this hand pump after setting auto-manual switch valve.
Product Specifications
Input signal
- Max. 5 bar
Supply air pressure
- Approx. 15 NL (balance position)
Air consumption
- 2% of full stroke (linear charasteristic)
Linerarity
- 2%
Hysterisis
- +3, -0 degree
Fully rotating angle
- Linear
Characterstic
- Square (increasing signal) / Square (decreasing signal)
Input signal
- Max. 5 bar
Supply air pressure
- Approx. 15 NL (balance position)
Air consumption
- 2% of full stroke (linear charasteristic)
Linerarity
- 2%
Hysterisis
- +3, -0 degree
Fully rotating angle
- Linear
Characterstic
- Square (increasing signal) / Square (decreasing signal)
