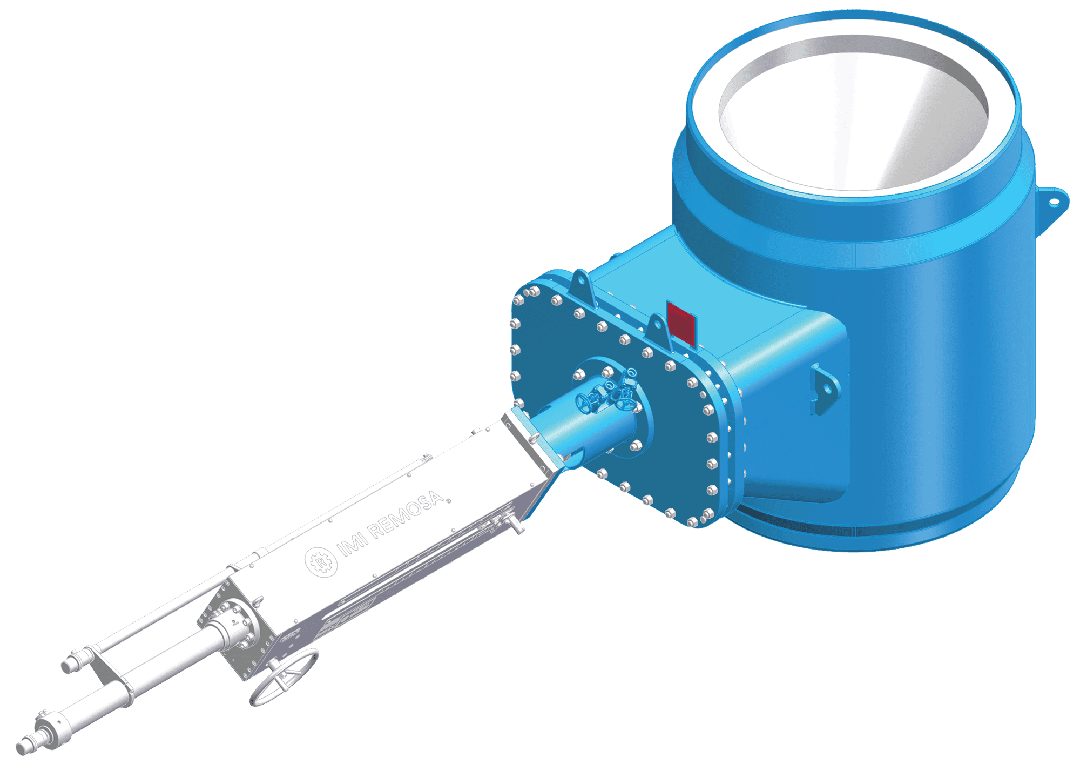

Slide Valves
Slide valves for fluid catalytic cracking (FCC) and flue gas lines
Our slide valves are custom-designed and engineered to meet the severe and harsh conditions in the FCC Reactor and Regenerator control loop: Spent Catalyst; Regen Catalyst; Cooled Catalyst; Recirculation Catalyst; and Flue Gas Double Disc.
- Designed and tailored to customer specifications.
- Integrated IMI Remosa Control System with Actuator and Hydraulic Power and Control Unit.
- Hot wall and cold wall design options available.
- Custom design able to fit in existing units without the need of major structural reworks.
- Proven and reliable design with hundreds of installations worldwide.
- Approved by all FCC Process Licensors.
Product Specifications
Materials
- Nickel alloys
- Stainless Steel
- Carbon Steel
- Stellite hardfacing
Body design
- Hot wall
- Cold wall
Production range
- Nominal diameter 40” – 150”
Temperature limits
- up to 850°C (1560°F) cold wall design
- up to 950°C (1740°F) hot wall design
Pressure limits
- up to 4 bar (58 psi)
